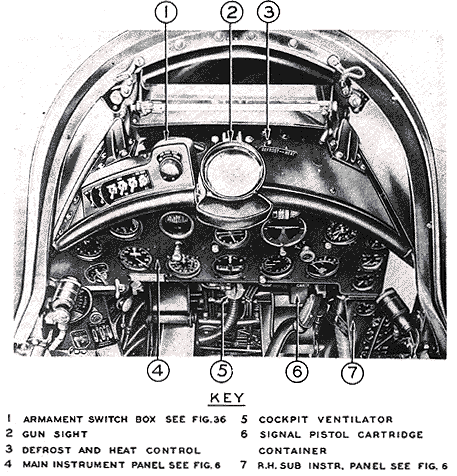

Cockpit-- Forward (63k.gif)

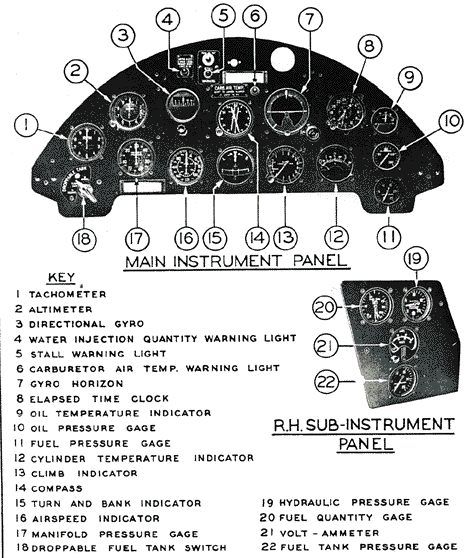

Main Instrument Panel (63k.gif)

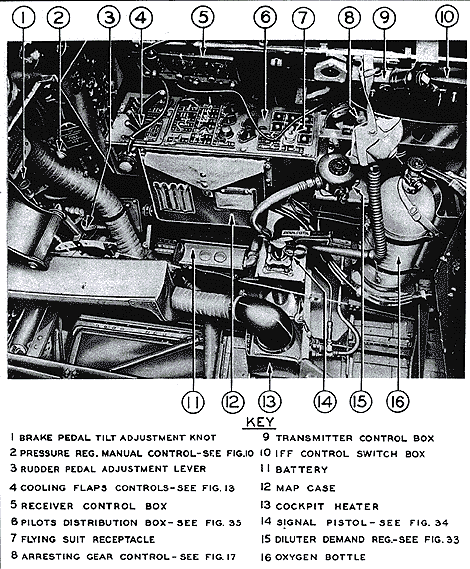

Cockpit-- Right Hand Side--Seat Removed (95k.gif)

Cockpit -- Left Hand Side--Seat Removed (95k.gif)

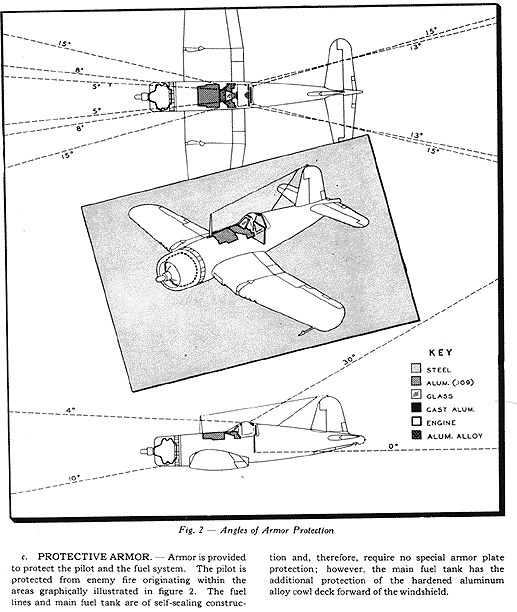

Angles of Armor Protection (63k.gif)

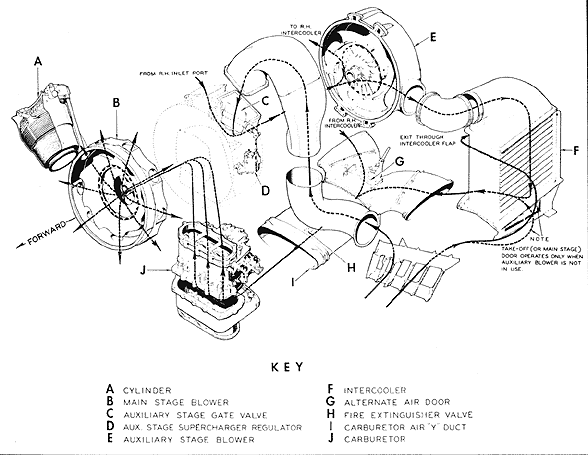

Induction System (32k.gif)

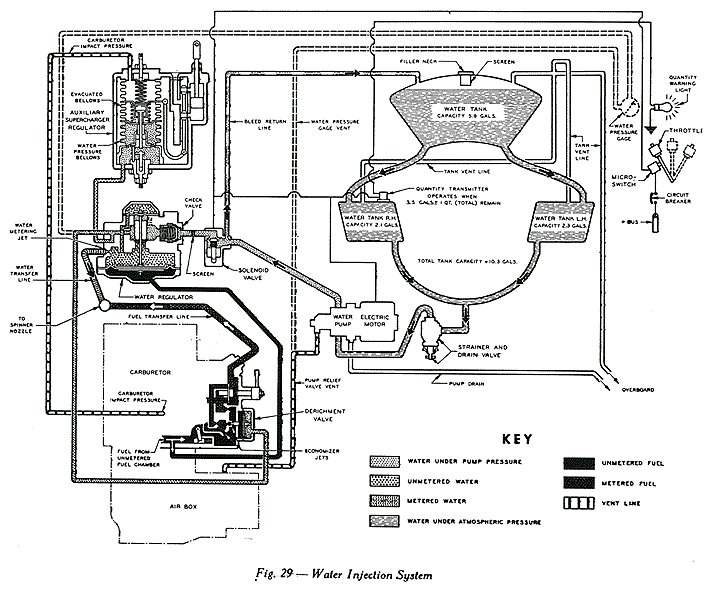

Water Injection System (63k.gif)

Specific Engine Flight Chart (63k.gif)

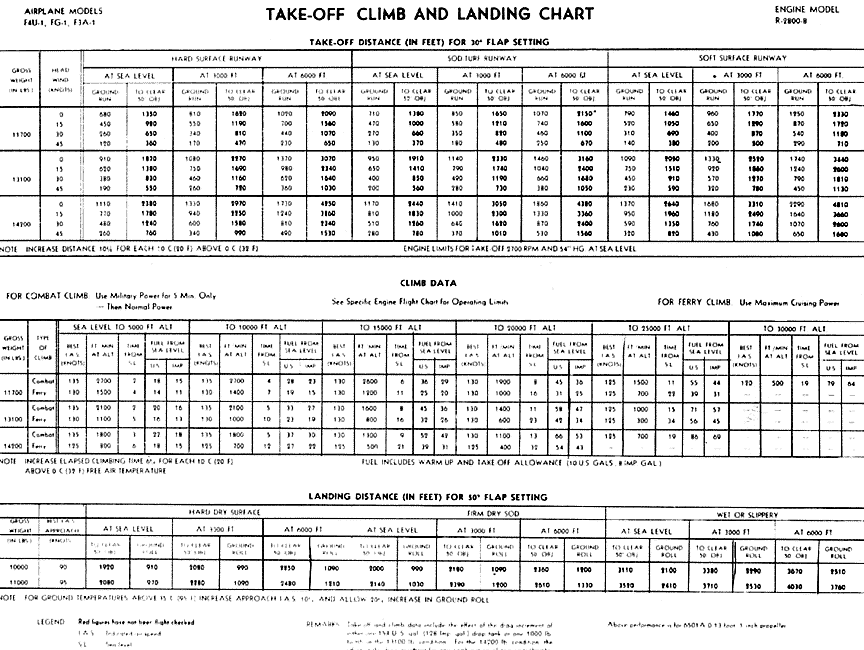

Take-Off Climb and Landing Chart (158k.gif)
