More neat B-24 stuff! Performance charts, cockpit photos, systems diagrams and more. COCKPIT CONTROLS DIAGRAM KEY FOR COCKPIT CONTROLS RUDDER CONTROL SYSTEM POWER PLANT CONTROL SYSTEM SUPERCHARGER PRESSURE AND TEMPERATURE CYCLE OPERATING LIMITS FOR R-1830-43 ENGINES (TURBO SUPERCHARGER) MIXTURE CONTROL QUADRANT & CARBURETOR PERFORMANCE CURVE PILOT'S CHECK CHART MAIN FUEL SYSTEM OIL SYSTEM HYDRAULIC SYSTEM LIFE RAFT OPERATION EMERGENCY BOMB RELEASE SYSTEM ARMOR PROTECTION CRUISING CONTROL CHART MAXIMUM RANGE CONTROL CHART (PRODUCTION CARBURETORS) TAKE-OFF CHART Return to the B-24 page Return to Zeno' Warbird Video Drive-In Home Page to see more WWII aircraft
COCKPIT CONTROLS

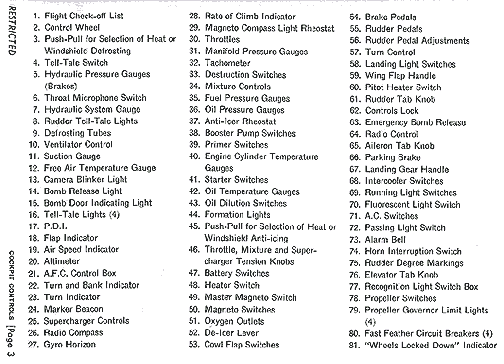

DIAGRAM KEY FOR COCKPIT CONTROLS

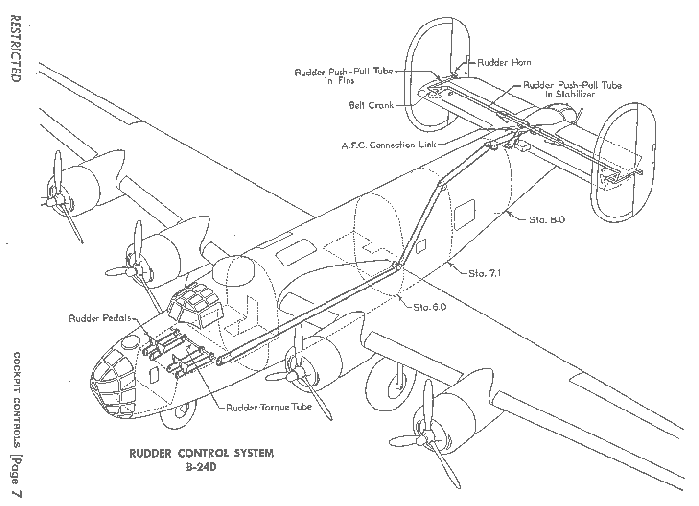

RUDDER CONTROL SYSTEM

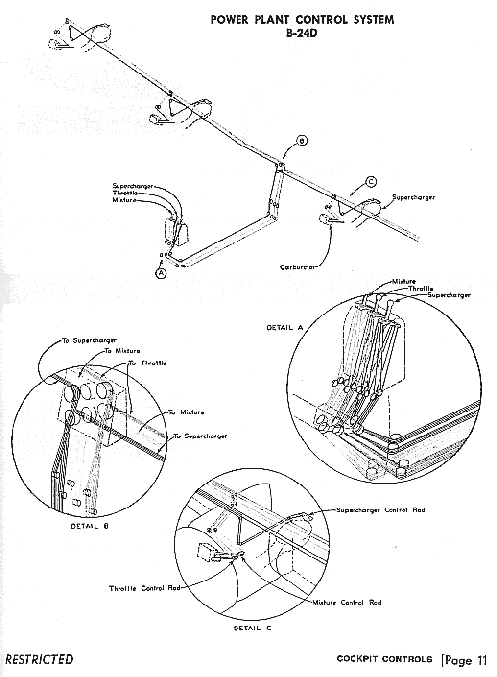

POWER PLANT CONTROL SYSTEM

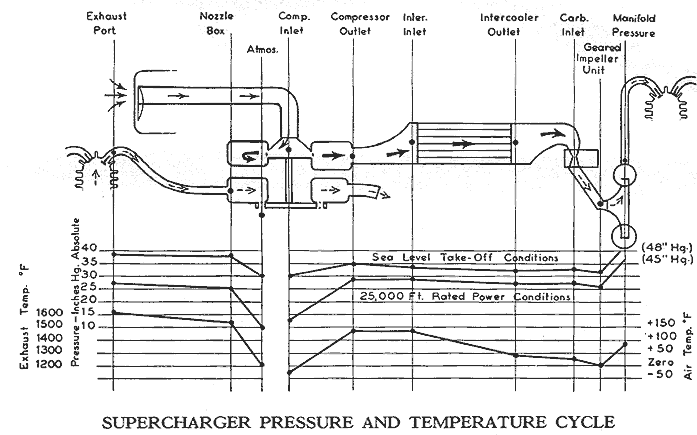

SUPERCHARGER PRESSURE AND TEMPERATURE CYCLE

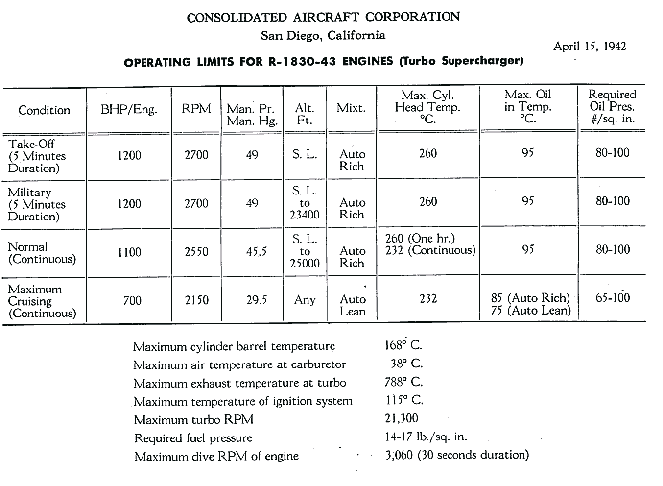

OPERATING LIMITS FOR R-1830-43 ENGINES (TURBO SUPERCHARGER)

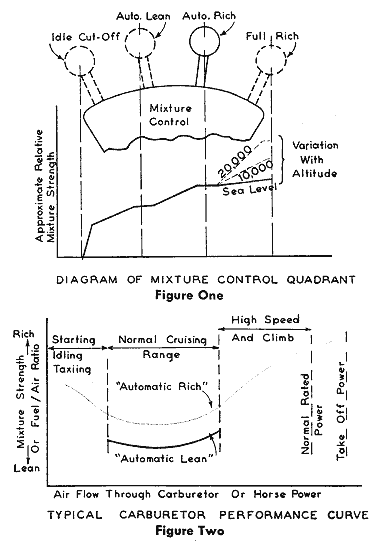

MIXTURE CONTROL QUADRANT & CARBURETOR PERFORMANCE CURVE

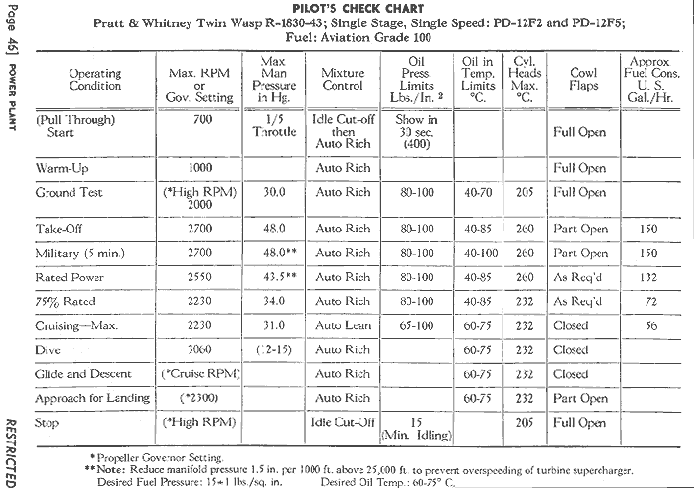

PILOT'S CHECK CHART

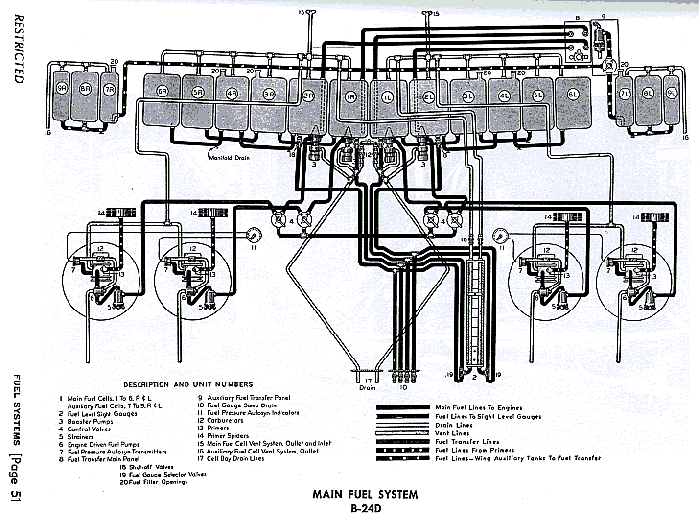

MAIN FUEL SYSTEM

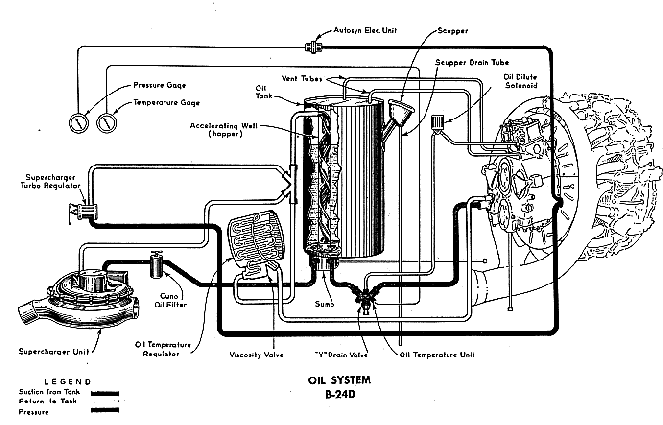

OIL SYSTEM

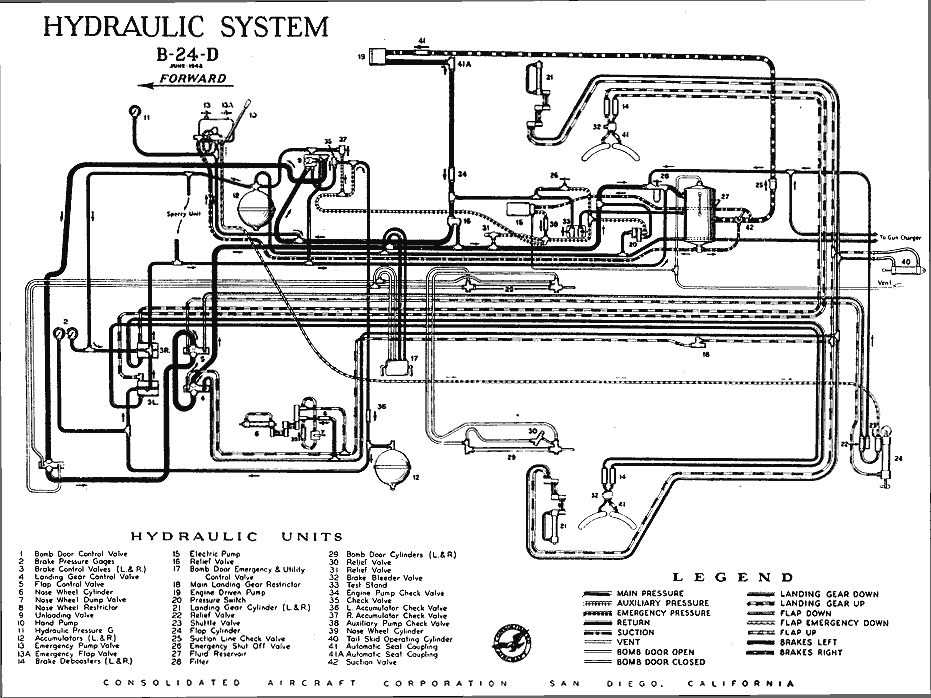

HYDRAULIC SYSTEM

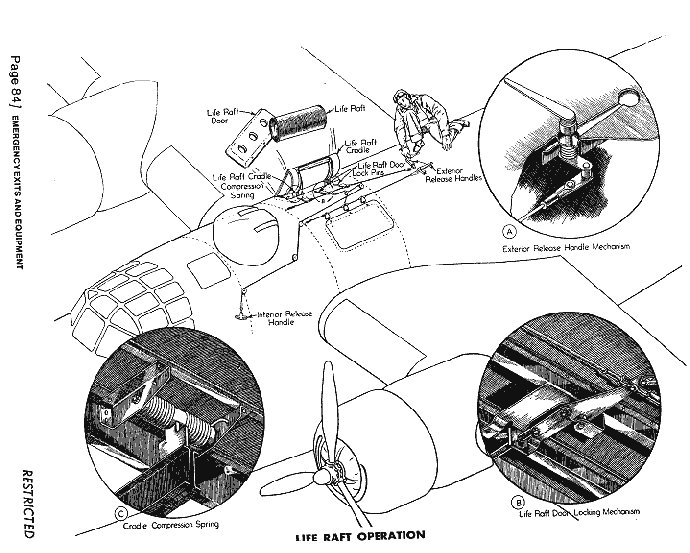

LIFE RAFT OPERATION

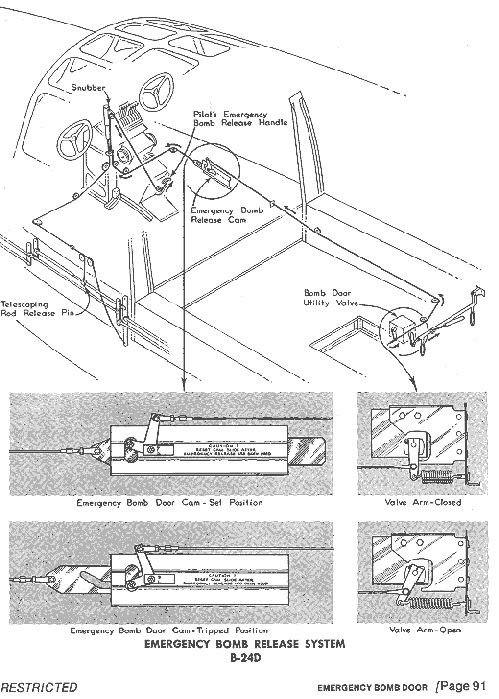

EMERGENCY BOMB RELEASE SYSTEM

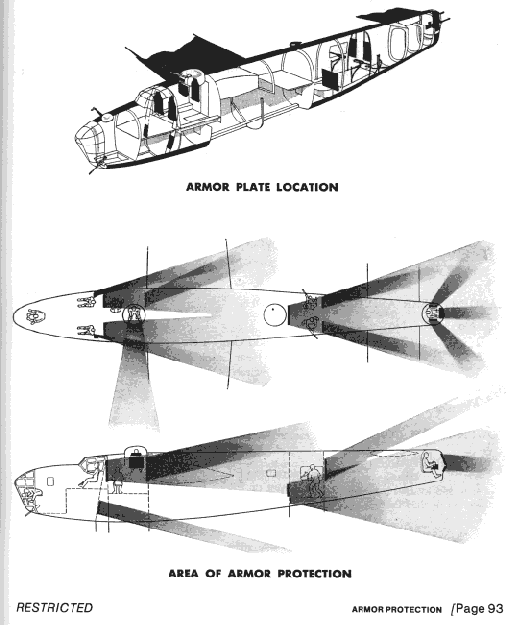

ARMOR PROTECTION

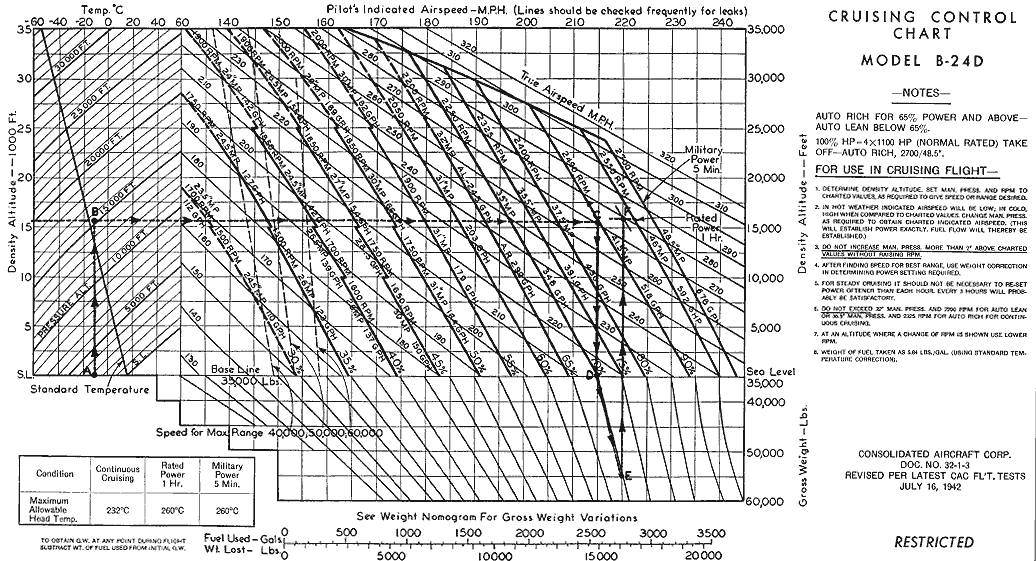

CRUISING CONTROL CHART

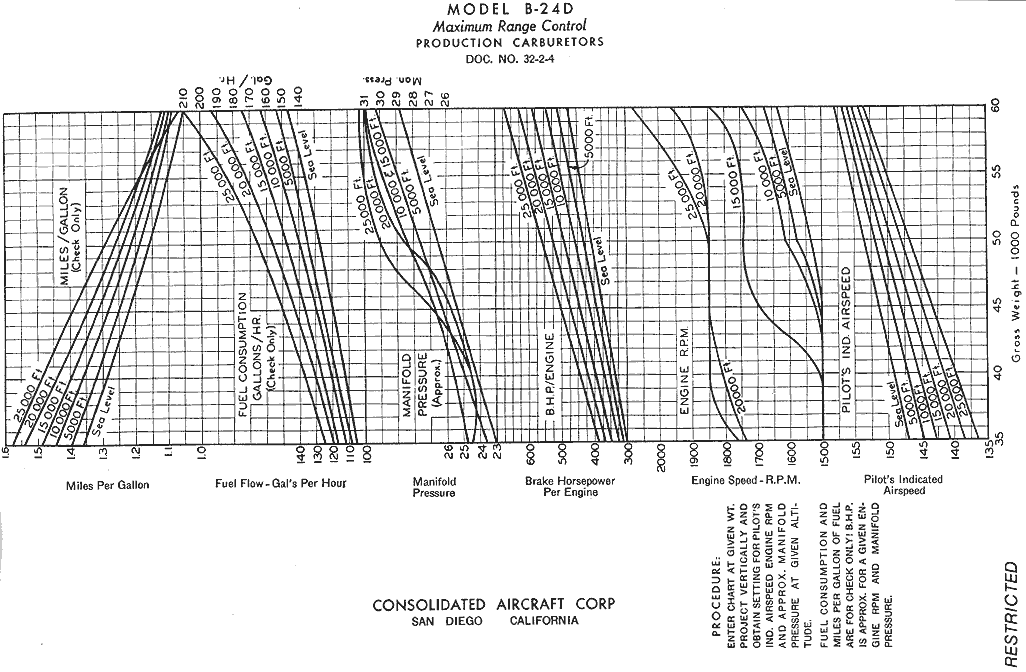

MAXIMUM RANGE CONTROL CHART (PRODUCTION CARBURETORS)

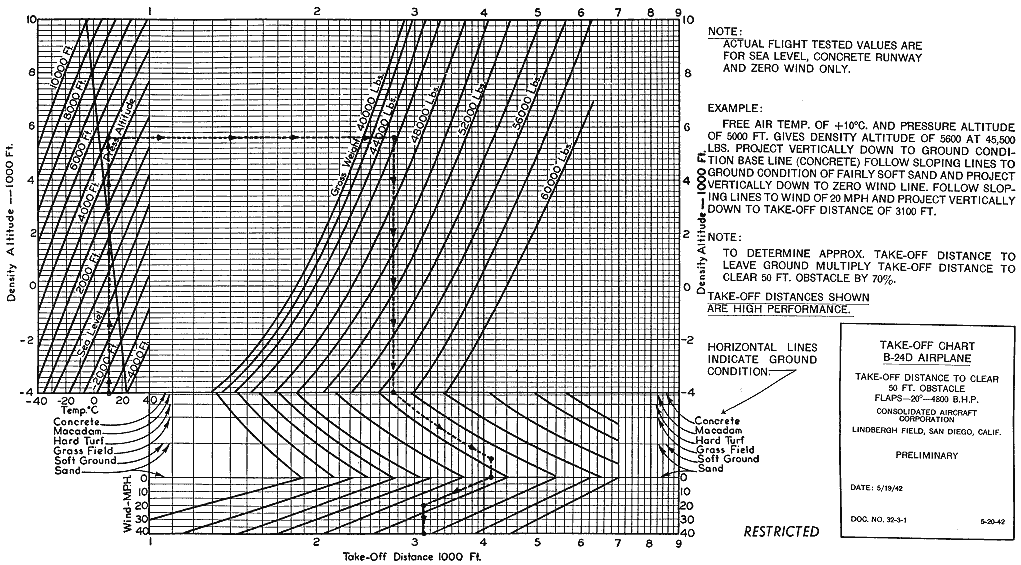

TAKE-OFF CHART
